LIANXIN-Sealor E-coating 701/706 Model · in Conductive Elastomers
E-Coating production process is unique and proprietary. Product mechanical structure is ideal for small-sized extruded…
- Thickness
- 0.05 – -
| PROPERTIES | UNIT | TEST METHOD | EC 701Coating Layer | EC 701 Internal Material | EC 706Coating Layer | EC 706 Internal Material |
|---|---|---|---|---|---|---|
| Thickness | mm | - | 0.05 | - | 0.05 | - |
| Electrical Properties | — | — | — | — | — | — |
| Volume Resistivity | Ω·cm | MIL-DTL-83528C | 0.006 | - | 0.004 | - |
| Shielding Performance | — | — | — | — | — | — |
| 500M | dB | MIL-DTL-83528C, Para. 4.5.12 | 100 | - | 100 | - |
| 2G | dB | 95 | - | 95 | - | — |
| 18G | dB | 90 | - | 90 | - | — |
| Mechanical Properties | — | — | — | — | — | — |
| Hardness | Shore A | ASTM D2240 | 60 | 55 | 60 | 55 |
| Density | g/cm³ | ASTM D792 | 2.1 | 1.2 | 2.8 | 1.2 |
| Tensile Strength | psi | ASTM D412 | 180 | 900 | 200 | 900 |
| Elongation | % | ASTM D412 | 150 | 300 | 150 | 300 |
| Tear Strength | PPI | ASTM D624 | 30 | 60 | 30 | 60 |
| Reliability Test | — | — | — | — | — | — |
| Surface Resistance / 85RH&85℃ | Ohm | MIL-DTL-83528C | 20 | - | 20 | - |
| Surface Resistance / Thermal Cycling | Ohm | MIL-DTL-83528C | 20 | - | 20 | - |
| Compression Set | % | ASTM D395-B | 20 | 12 | 25 | 12 |
| Static Pressure - Pressure Curve with φ0.7mm Solid O-tyoe Strip test | — | — | — | — | — | — |
| 20% Compression | N/cm | QA-WI-FIP-003 | 3 | 2 | — | — |
| 40% Compression | N/cm | QA-WI-FIP-003 | 21 | 6 | — | — |
| Working Temperature | °C | ASTM D1329 | -55~+160 | -55~+160 | — | — |
About the model
E-Coating production process is unique and proprietary. Product mechanical structure is ideal for small-sized extruded strip applications. High conductivity and thin conductive layer create high level EMI shielding performance and good electrochemical stability; Lianxin uses specific primer coating process to ensure the surface coating is reliable in wear, corrosion and aesthetically appealing.
The inner core of E-Coating product is non-conductive elastomer. It retains good compression and rebound characteristics even in very small dimensions. E-coating elastomer is an excellent choice for environmental sealing and EMI shielding of small factor and compact structure design. Non-conductive elastomer cost is far less than the conductive elastomer, and only the product surface is plated with thin metal coating. This makes E-coating products very economical and competitive in the market.

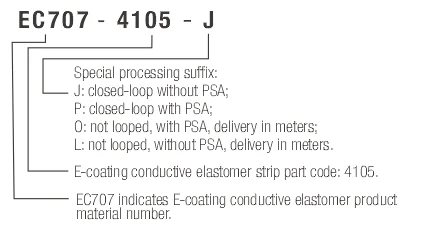

Lianxin has introduced four series of E-coating products for selection: LIANXIN-SEALOR EC701: Silver/Glass, LIANXIN-SEALOR EC706: Silver/Nickle, LIANXIN-SEALOR EC707: Silver/Copper, and LIANXIN-SEALOR EC707D: Dark Silver. The differences amount these products are conductivity, EMI shielding effectiveness and electrochemical compatibility.
