LIANXIN-Sorber E-RAS90 Model · in Moldable RF Absorber
LIANXIN-Sorber E-RAS90 is a thin, soft, dielectric type absorber. It has wide RF range coverage and good insertion loss…
- Thickness
- 0.5~3.2
- Flame rating
- V-0
Specification
| PROPERTIES | UNIT | TEST METHOD | LIANXIN-SORBER E-RAS90 |
|---|---|---|---|
| Appearance | - | Visual | Black |
| Base Material | - | - | Silicone |
| Dielectric Constant ε '(77GHz) | - | SJ20512-1995 | 30.0 |
| Dielectric Constant ε "(77GHz) | - | SJ20512-1995 | 12.6 |
| Insertion Loss (77GHz) | dB | LIANXIN-70/90 (Transmission method) | -22.5 |
| Hardness | Shore D | ASTM D2240 | 70 |
| Flame Retardant Property | - | UL-94 | V-0 |
| Working Temperature | ℃ | ASTM D1329 | -70~+200 |
| Thickness | mm | ASTM D1329 | 0.5~3.2 |
About the model
LIANXIN-Sorber E-RAS90 is a thin, soft, dielectric type absorber. It has wide RF range coverage and good insertion loss within 4-110GHz RF range. It is specially designed to work for millimeter RF applications, include high speed optical transceiver, ADAS Radar, 5G networking equipments, etc.
LIANXIN-SORBER E-RAS90 has very good adaptability to ruggedized conditions, including wide temperature range, oil resistance and UL-94 V0 inflammability. The magnetic fillers give the products excellent absorption performance when the incident angle is over 65 degree.

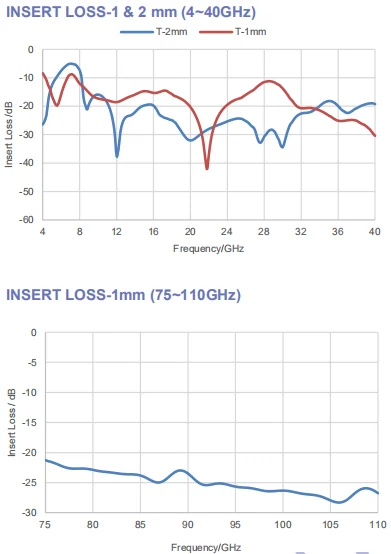

Product Curve

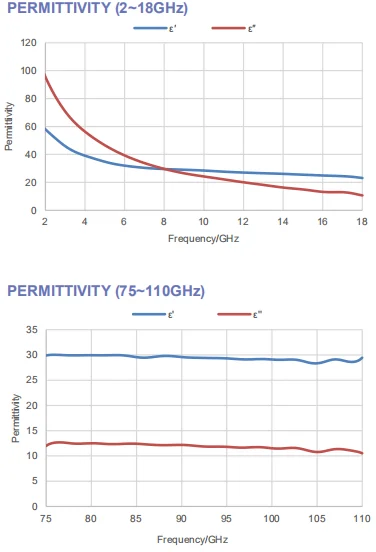

Typical Property Data
