Aeroflex Grease 5000 Model · in TIM-Grease
Aeroflex Grease 5000 is silicone-based thermal grease designed to solve overheating and reliability problems. It can…
- Thermal conductivity
- 1.5–5 W/m·K
- Flame rating
- 94V-0
Specification
| PROPERTIES | UNIT | TEST METHOD | 5015 | 5020 | 5030 | 5040 | 5050 |
|---|---|---|---|---|---|---|---|
| Appearance | - | Visual | Visual | Grey | Grey | Grey | Grey |
| Thermal Conductivity | W/m·K | ISO 22007-2:2008 | 1.50 | 2.00 | 3.10 | 4.00 | 5.00 |
| Thermal Resistance @50psi | °C·in²/W | ASTM D5470 | 0.027 | 0.023 | 0.009 | 0.01 | 0.007 |
| Thermal Resistance @50psi °C·cm²/W | 0.058 | 0.065 | 0.045 | — | — | ||
| Thermal Resistance @23°C | cps | BrookField DV-II + Spindle–T-F; Speed 2 rpm | 1.2X10 5 | 8.0X10 4 | 1.5X10 5 | 1.3X10 5 | 2.5X10 5 |
| Flame Rating | - | U.L | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Volume Resistivity | Ω·cm | ASTM D257 | ≥1.0X10 12 | ≥9.0X10 13 | ≥1.0X10 10 | ≥1.0X10 9 | ≥1.0X10 9 |
| Density | g/cm³ | ASTM D792 | 2.55 | 2.60 | 2.75 | 2.82 | 2.92 |
| Dielectric Constant | @1MHz | ASTM D150 | 6.5 | 6.3 | 7.5 | 7.8 | 8.5 |
| Service Temp. | °C | Lianxin | -50~+150 | -50~+150 | -50~+150 | -50~+150 | -50~+150 |
| RoHS Compliant | - | Lianxin | YES | YES | YES | YES | YES |
About the model
Aeroflex Grease 5000 is silicone-based thermal grease designed to solve overheating and reliability problems. It can thoroughly wet out contact surfaces to create a low thermal resistance, and can be used in pneumatic dispensing and screen printing systems. It is environmentally safe and reliable.
Product Description

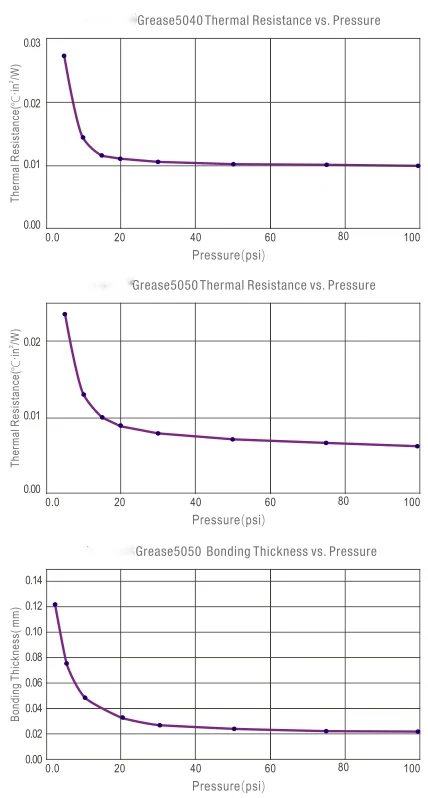

Typical Property Data
