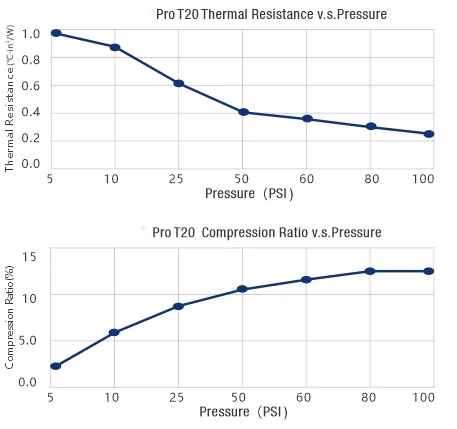

Aeroflex Pro T20 Model · in TIM-Insulator
The electrically insulating and thermally conductive material is designed to solve overheating problems for today's…
- Thermal conductivity
- 1.2–3.5 W/m·K
- Thickness
- 0.23 – 0.25
| PROPERTIES | UNIT | TEST METHOD | Pro T4 | Pro T4R | Pro T9 | Pro T9R | Pro T10 | Pro T20 |
|---|---|---|---|---|---|---|---|---|
| Physical Properties | — | — | — | — | — | — | — | — |
| Appearance | - | Visual | Grey | Pink | Brownish red | Pink | Yellow | White |
| Composition | - | - | Ceramic Filled Silicone + Fiberglass | Ceramic Filled Silicone +Insulating Film | Ceramic Filled Silicone + Fiberglass | — | — | — |
| Thickness | mm | ASTM D374 | 0.23 | 0.18 | 0.23 | 0.19 | 0.15 | 0.25 |
| Hardness | Shore A | ASTM D2240 | 70 | 70 | 89 | 90 | — | — |
| Temperature Range | °C | - | -40~+180 | -40~+180 | -60~+180 | — | — | — |
| Tensile Strength | Kpsi | ASTM D412 | 3.2 | 3.2 | 7.2 | 7.8 | 5 | 5 |
| Elongation | % | ASTM D412 | 40 | 45 | 40 | 45 | 35 | 5 |
| Electrical Properties | — | — | — | — | — | — | — | — |
| Breakdown Voltage | VAC | ASTM D149 | >4000 | >6000 | >7000 | >4000 | — | — |
| Volume Resistivity | Ω·cm | ASTM D257 | 9.6X10 12 | 9.6X10 12 | 1.0X10 12 | 1.1X10 12 | — | — |
| Flammability Rating | - | UL-94 | HB | Bare wood V-0, With adhesive HB | V-0 | — | — | — |
| Thermal Properties | — | — | — | — | — | — | — | — |
| Thermal Conductivity | W/m·K | ASTM D5470 | 1.2 | 1.3 | 1.6 | 1.5 | 1.6 | 3.5 |
About the model
The electrically insulating and thermally conductive material is designed to solve overheating problems for today's power component assemblies. Most products are film-based and designed to resist cutting-through in screw mounting applications. Our products provide a more consistent breakdown voltage over other insulation constructions.
The soft conformal coating on the film provides an excellent mating surface for low pressure clip mounting. Our insulator products are available with a diverse range of thermal performance to suit any application. These materials can be die-cut into any standard or customized shape.
