Honeycomb Panel for Radiator Fan Model · in EMI Window Shielding Module
The honeycomb panel for radiator mainly adopts the structural pattern of honeycomb core + framework + conductive…
| Product ID | A | B | C | D | E | Honeycomb core |
|---|---|---|---|---|---|---|
| hole | thickness | — | — | — | — | — |
| hole 9015 | 114.3 | 15.88 | 5.18 | 3.18 |
About the model

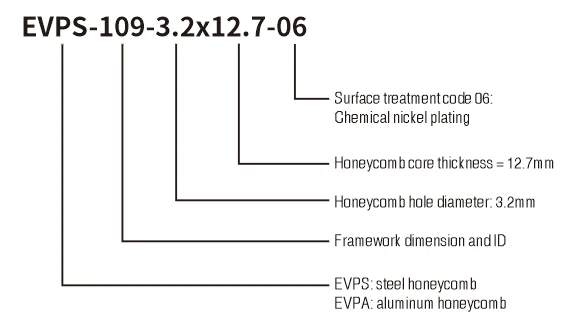

The honeycomb panel for radiator mainly adopts the structural pattern of honeycomb core + framework + conductive gasket. It can make heat flow to the air fast to accelerate heat rejection. The framework can fix the product and can be riveted, which is convenient for assembling. The conductive gasket can play a better role of conduction to ensure the shielding effectiveness.
Note:
The actual honeycomb panel thickness is honeycomb core thickness + framework thickness + conductive gasket thickness. The specific tolerance and surface treatment requirement shall be subjected to the drawing provided by the buyer and seller .
Standard size of honeycomb panel for Radiator fan
