Form in place gasket Family · 4 models

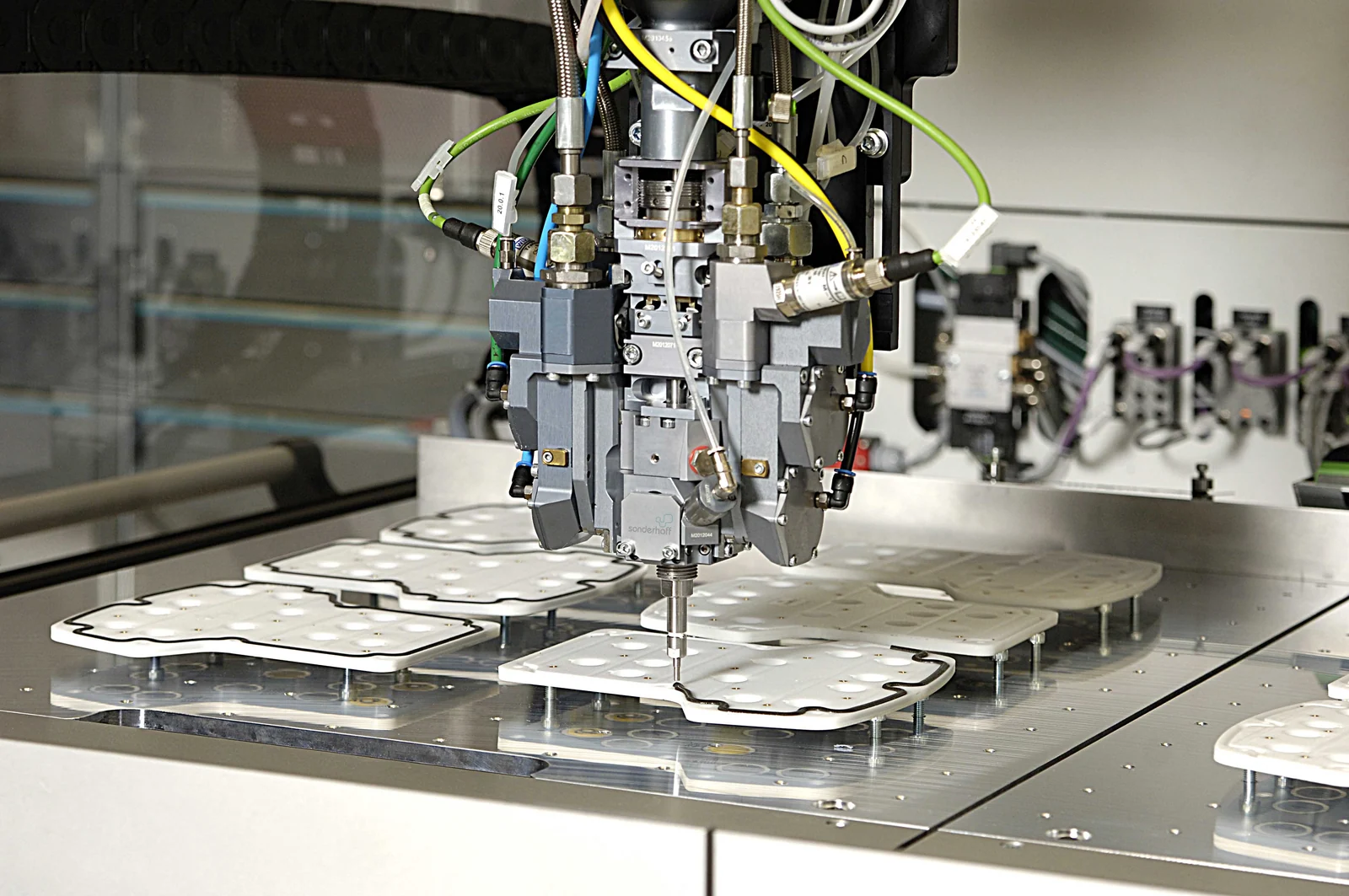

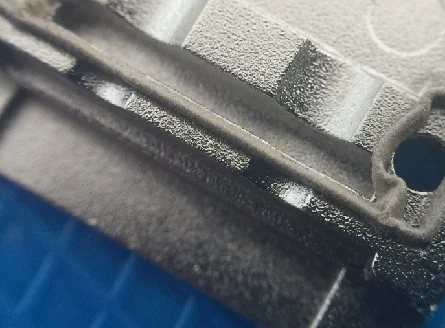

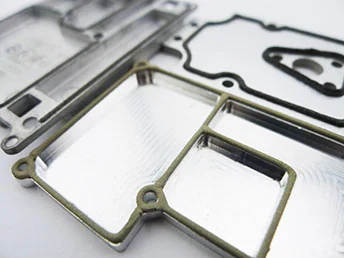

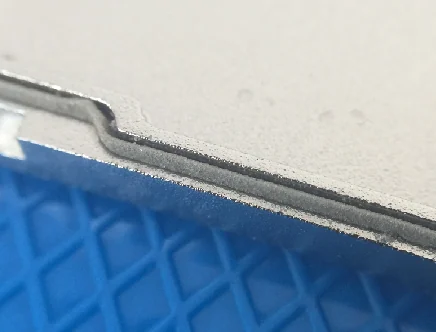

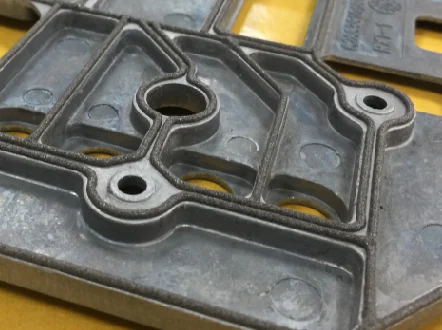

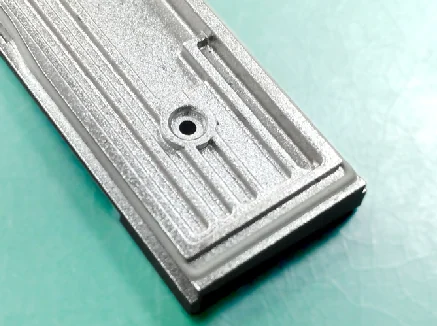

Brief Introduction With programmable automated robot, Lianxin's EMI gaskets can be dispensed onto metal, or conductive…
- Shielding effectiveness
- 80–100 dB
- Flame rating
- V-0
Specification
| PROPERTIES | UNIT | TEST METHOD | CG-9010 | CG-9011 | CG-9012 | CG-5010 | CG-5011 | CG-5020 | CG-8021R | CG-8025R | CG-8020 | CG-8021 | CG-8028 | CG-7010 | CG-7010AD | SG-701 | SG-701M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Benefit | - | - | High performance | Surface-Q | Aerospace class | High elasticity | Superfine | Low Temperature Curing | Super soft | Superfine | High velocity | Super soft | Low stress | Corrosion resistance | Corrosion resistance | Super soft | Adhesive type |
| Conductive Materials | - | - | Ag/Cu | Ag/Cu | Ag/Cu | Ag/Ni | Ag/Ni | Ag/Ni | Ni/C | Ni/C | Ni/C | Ni/C | Ni/C | Ag/Al | Ag/Al | - | - |
| Base Material | - | - | Silicone | Silicone | Silicone | Silicone | Silicone | Silicone | Silicone | Silicone | Silicone | Silicone | Silicone | Silicone | Silicone | Silicone | Silicone |
| Curing Conditions | - | - | Room temperature curing | Room temperature curing | Room temperature curing | Room temperature curing | Room temperature curing | High temperature curing | Room temperature curing | Room temperature curing | High temperature curing | High temperature curing | High temperature curing | Room temperature curing | Room temperature curing | Room temperature curing | Room temperature curing |
| Curing Temperature | ℃ | - | 25 | 25 | 25 | 25 | 25 | 100 | 25 | 25 | 150 | 150 | 100 | 25 | 25 | 25 | 25 |
| Curing Time | - | - | 24h | 12h | 24h | 24h | 24h | 4h | 24h | 24h | 30min | 30min | 1h | 12h | 12h | 12h | 4h |
| Hardness | Shore A | ASTM D2240 | 60 | 55 | 55 | 50 | 60 | 55 | 45 | 45 | 60 | 45 | 35 | 60 | 60 | 20 | 35 |
| Tensile Strength | PSI | ASTM D412 | 130 | 130 | 130 | 200 | 200 | 150 | 150 | 120 | 150 | 150 | 110 | 130 | 130 | 650 | 650 |
| Elongation | % | ASTM D412 | 150 | 150 | 150 | 100 | 180 | 100 | 100 | 100 | 100 | 100 | 100 | 180 | 180 | 300 | 300 |
| Density | g/cm³ | ASTM D792 | 3.2 | 3.0 | 3.2 | 3.8 | 3.8 | 3.9 | 1.9 | 2.2 | 1.9 | 1.9 | 1.9 | 2.2 | 2.2 | 1.2 | 1.2 |
| Volume Resistivity | ohm-cm | MIL-DTL-83528C | 0.003 | 0.004 | 0.003 | 0.005 | 0.01 | 0.01 | 0.04 | 0.04 | 0.03 | 0.04 | 0.03 | 0.008 | 0.008 | - | - |
| Compression Rate @ 100 ℃ for 70 hours | % | ASTM D395-B | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Working Temperature | ℃ | - | -55~+125 | -55~+125 | -55~+125 | -55~+125 | -55~+125 | -55~+150 | -55~+125 | -55~+125 | -55~+125 | -55~+125 | -55~+125 | -55~+120 | -55~+125 | -55~+125 | -55~+125 |
| Flame Retardant Grade (Between aluminum plates) | - | UL 94 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 |
| Shielding Effectiveness (AVG 200mhz-18ghz) | dB | MIL-DTL-83528C | >100 | >90 | >100 | >90 | >90 | >90 | >80 | >80 | >80 | >80 | >80 | >90 | >100 | - | - |
| Adhesive Point Size W1.1*H0.9*L10mm | N/cm | Lianxin QA-WI-054 | 12 | 12 | 12 | 16 | 13 | 15 | 12 | 15 | 25 | 17 | 15 | 13 | 14 | 20 | 20 |
| Dispensing Size @30% compression, W1.1*H0.9*L10mm | N/cm | Lianxin QA-WI-058 | 39 | 40 | 28 | 25 | 19 | 28 | 21 | 14 | 43 | 20 | 12 | 32 | 35 | 13 | 15 |
| Minimum Recommended Value / Maximum Recommended Value of Dispensing Size | mm | Width * Height | 0.6*0.4/ 2.5*1.7 | 0.5*0.25/ 2.5*1.7 | 0.6*0.4/ 2.5*1.7 | 0.5*0.25/ 2.5*1.7 | 0.3*0.3/ 2.5*1.7 | 0.5*0.4/ 2.5*1.7 | 0.6*0.4/ 1.65*1.96 | 0.4*0.3/ 2.5*1.7 | 0.7*0.5/ 2.5*1.7 | 0.7*0.5/ 2.5*1.7 | 0.7*0.5/ 2.5*1.7 | 0.6*0.4/ 2.5*1.7 | 0.6*0.4/ 2.5*1.7 | 0.6*0.4/ 2.5*1.7 | 0.6*0.4/ 2.5*1.7 |
| Storage Time | Month | - | 3 | 3 | 3 | 3 | 3 | 6 | 3 | 3 | 6 | 6 | 6 | 3 | 3 | 3 | 3 |
| Storage Conditions | ℃ | - | -30~-10 | -30~-10 | -30~-10 | -30~-10 | -30~-10 | -30~-10 | -30~-10 | -30~-10 | -30~-10 | -30~-10 | -30~-10 | -30~-10 | -30~-10 | -30~-10 | -30~-10 |
About the family
Brief Introduction

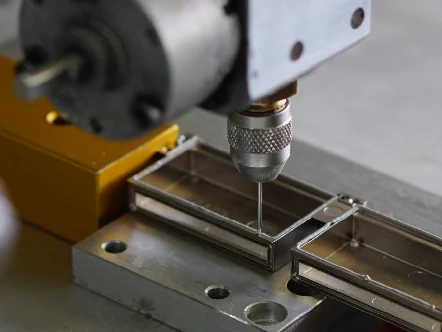

With programmable automated robot, Lianxin's EMI gaskets can be dispensed onto metal, or conductive painted, plated, or metallic surfaces in the electronic enclosures. Form in place gasket (FIP) is suitable for applications that requires environmental sealiental elements.FIPprovides the lowest total cost for small cross section and complex pattern applications. A range of conductive fillers can be selected to meet critical design requirement.
