CM4-EPDM Model · in LIANXIN-CUSH Series Vibration Damping Cushion Material

Cm4 - EPDM is a new type of environmental friendly rubber foam material; it's synthesized with Ethylene-Propylene-Diene…

Flame rating
UL94
Specification 10 properties · 1 models
CharacteristicUnitEPDMMeasurement method
specificationmm1mx2m-
Material-EPDM-
colour-Black-
densitykg/m 3130±30GB/T 6343
hardnessHC13±5ASTM D2240
25%Compression deformation loadKpa35±10ASTM D3574
Tensile StrengthKpa≥400ASTM D3574
Tear strengthN/mm≥1.2ASTM D3574
Elongation at break%≥150ASTM D3574
Flame retardant-UL 94 HBF OptionalUL94

About the model

Cm4 - EPDM is a new type of environmental friendly rubber foam material; it's synthesized with Ethylene-Propylene-Diene Monomer as the main material. It has excellent resistance to weather, ozone, heat, acid and base, and vapour. It has outstanding color stability, electrical property, aging resistance, electrical insulation property, and resistance to ozone, as well as good chemical stability, so it can be used in EPDM hose, tire side, rubber runway, joint strip, tyre tube and automobile parts. Now it's widely used in the field of urban infrastructure construction, automobile industry, high-speed railway, rail transit etc.

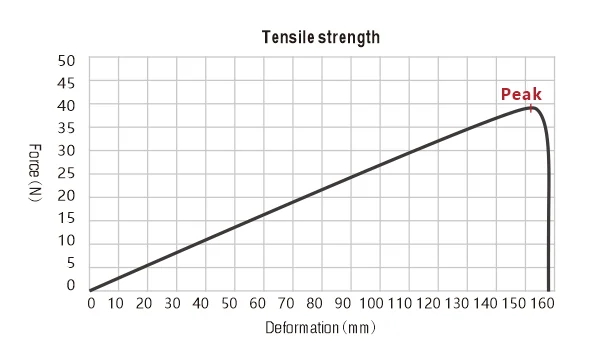

Typical Property Data Performance Curve
