Corrosion Resistance and High Temperature Core-EF0P-EPDM Model · in Conductive Tape and Conductive Foam
Lianxin EFOP - conductive foam is a kind of functional material coated with EPDM materials of different hardness. The…

Specification
| PROPERTIES | Performance parameter | TEST METHOD |
|---|---|---|
| product composition | EPDM | - |
| 180.Peel strength gf/25mm | ≥800 | ASTM D3330 |
| Contact resistance Ω | ≤0.15 | MIL-STD-202 |
| Surface resistance Ω/sq | ≤0.1 | ASTM F390 |
| Shielding effectiveness dB | ≥60 | MIL-DTL-83528 |
| Recommended compression ratio | Customized according to EPDM hardness | - |
About the model
Lianxin EFOP - conductive foam is a kind of functional material coated with EPDM materials of different hardness. The product has the favorable conductivity of the electrically conductive cloth, and is resistant to abrasion and corrosion; it's a kind of high quality, flame retardant, conductive lining. It's extensively used in the frame of hatch door of communication center, data center and carrier, and has good supporting, sealing, and shielding property.
Product Description
Typical Property Data

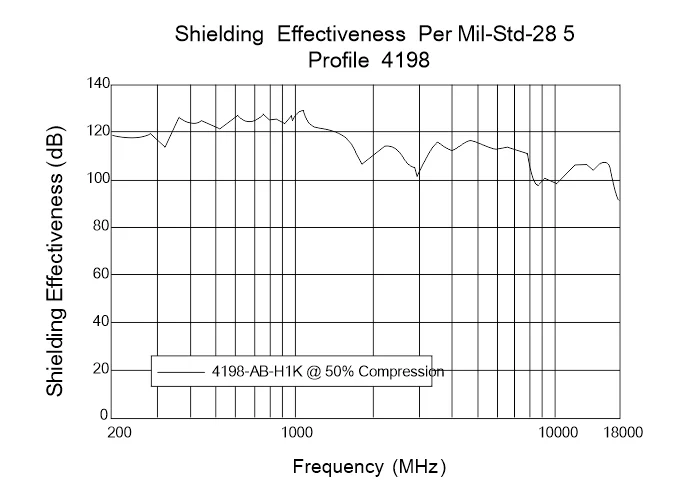

Performance Curve
