Electrically Conductive Fabric over Foam - EFO Model · in Conductive Tape and Conductive Foam
Lianxin EFOF products provide excellent EMI shielding solutions. The flexible foam provide cushioning function…
- Flame rating
- 0.5-20mm / 1.5mm / Gray + gray core / UL94V0 / ＜25 / ﹣﹣﹣▲﹣﹣﹣ / ﹣40-85° / 85° / High temperature resistance grade, standard gasket, balanced performance
| Product name | Product Series | Product structure | Optional height mm | Minimum width mm | colour | Flammability rating | Compressed permanent deformation% | Hardness (soft---hard) | Working temperature (℃) | Short-term maximum temperature (℃) | Features and advantages |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FOA-Aluminum Foil+Poron | FOA | AL+Poron | 0.5-8mm | 2mm | Silver | Flame retardant | ＜30 | ﹣﹣﹣﹣▲﹣﹣ | ﹣40-120° | 120° | Corrosion resistance, customization, small compression set, high application temperature |
| FOC-Copper Foil+Poron | FOC | CU+poron | 0.5-8mm | 2mm | yellow | Non-flame retardant | ＜30 | ﹣﹣﹣﹣▲﹣﹣ | ﹣40-120° | 150° | Wear resistance, small compression set, high application temperature |
| FOG-PI plating+Poron | FOG | PI+Poron | 0.5-8mm | 2mm | Silver gray | Non-flame retardant | ＜25 | ﹣﹣﹣﹣▲﹣﹣ | ﹣40-100° | 100° | Customization, small compression deformation, high application temperature, welding |
| FOH-PI plating+Slicon | FOH | PI+Slicon | 0.5-8mm | 2mm | Silver gray | Flame retardant | ＜25 | ﹣﹣﹣﹣▲﹣﹣ | ﹣40-100° | 100° | Customization, small compression deformation, high application temperature, standard gaskets can be welded, balanced performance |
| FOF-Gray Plain+Black PU | FOF | Gray plain cloth+PU | 0.5-20mm | 1.5mm | gray | Non-flame retardant | ＜25 | ﹣﹣﹣▲﹣﹣﹣ | ﹣40-85° | 85° | Standard gasket, balanced performance |
| FOT-Black Plain+Black PU | FOT | Black plain cloth+PU | 0.5-20mm | 1.5mm | gray | Non-flame retardant | ＜25 | ﹣﹣﹣▲﹣﹣﹣ | ﹣40-85° | 85° | Standard gasket, balanced performance |
| FON-conductive non-woven fabric + black PU | FON | Non-woven fabric+PU | 0.5-20mm | 1.5mm | gray | Non-flame retardant | ＜25 | ﹣﹣﹣▲﹣﹣﹣ | ﹣40-85° | 85° | Standard liner, balanced performance, soft surface, smooth cut |
| FOR-Gray Plaid+Black PU | FOR | Grey Plaid+PU | 0.5-20mm | 1.5mm | gray | Non-flame retardant | ＜25 | ﹣﹣﹣▲﹣﹣﹣ | ﹣40-85° | 85° | Standard gasket, balanced performance |
| FOO-Black Plaid+Black PU | FOO | Black Plaid+PU | 0.5-20mm | 1.5mm | black | Non-flame retardant | ＜25 | ﹣﹣﹣▲﹣﹣﹣ | ﹣40-85° | 85° | Standard gasket, balanced performance |
| FOM-Special Conductive Fabric-Flame-retardant Gray Plain+High-temperature PU | FOM | Flame retardant fiber + high temperature resistant PU | 0.5-20mm | 1.5mm | Gray + gray core | UL94V0 | ＜25 | ﹣﹣﹣▲﹣﹣﹣ | ﹣40-85° | 85° | High temperature resistance grade, standard gasket, balanced performance |
| FOP-Gray flame retardant plaid cloth+EPDM sub | FOP | Flame-retardant fiber+EPDM | 1-20mm | 2mm | Gray + custom core | UL94 HB | ＜15 | ﹣﹣▲﹣﹣﹣﹣ | ﹣55-150° | 120° | Small compression set, high application temperature, tear resistance, customized profile |
| FOQ-Special Conductive Cloth-Flame Retardant Grey Plaid+Black PU | FOQ | Flame Retardant Plaid+PU | 0.5-20mm | 1.5mm | gray | UL94V0 | ＜25 | ﹣﹣﹣▲﹣﹣﹣ | ﹣40-85° | 85° | Flame retardant grade standard liner, balanced performance, small compression set, high application temperature, tear resistance |
| FOS-Gray flame retardant plaid cloth + red silicone foam core | FOS | Flame Retardant Plaid+Slicon | 0.8-25mm | 1.5mm | Gray + red core | UL94V0 | ＜5 | ﹣﹣▲-﹣﹣﹣ | ﹣60-225° | 150° | Small compression set, high application temperature, tear resistance |
About the model
Lianxin EFOF products provide excellent EMI shielding solutions. The flexible foam provide cushioning function. Optional non-conductive or conductive pressure-sensitive adhesive (PSA) tape with a release liner (ERL) is offered. Product profile can be made into rectangle, D-shape, C-shape, P-shape, T-shape, knife and bell shape, and can be further customized for different applications through die cutting, perforating, grooving etc. EFOF contains no halogen, and is RoHS and REACH compliant.

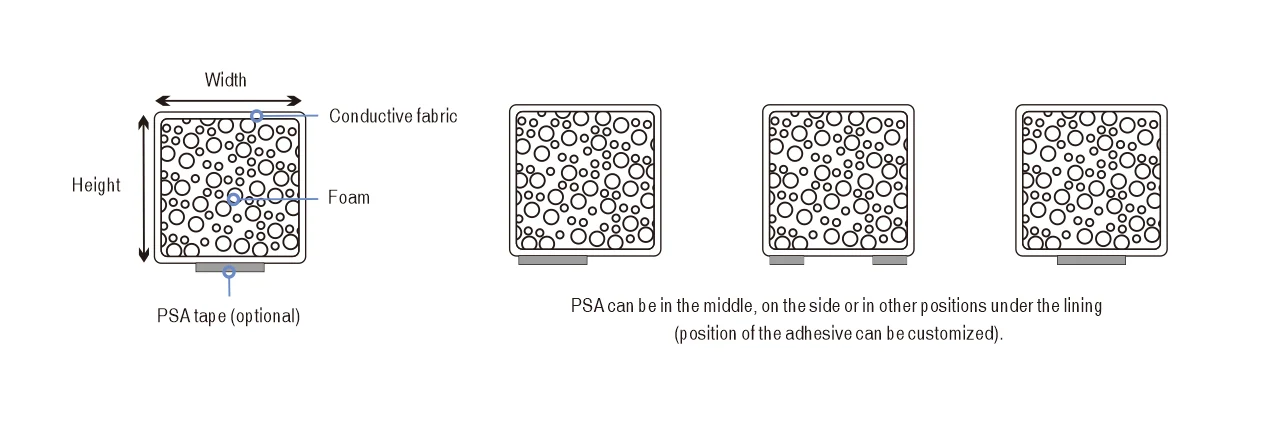

EFOF Product Structure
According to the groove, optional cross-sectional shapes are as follows.
