High Temperature Resistant Polyurethane Base Material -EF0F-PU Model · in Conductive Tape and Conductive Foam
EFOF - PU high temperature resistant polyurethane conductive product is made by wrapping the highly resilient foam…

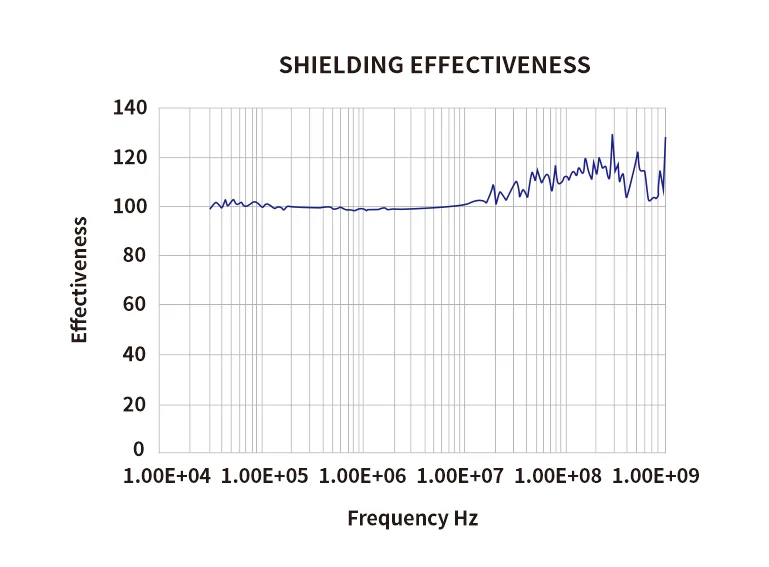

- Shielding effectiveness
- 50–94 B - Bell Shape
| E | X | XXXX | X | X | X | XXXX | X |
|---|---|---|---|---|---|---|---|
| Product Category | Profifile Shape | Profifile Size | Core Type | Fabric Type | Attachment | Length | Flame Rating |
| E = EMI Shielding | B - Bell Shape | — | F - 50KG-HB- Black PU Core | A-Grey Ni/Cu Polyester Taffeta | CD - Double Conductive PSA Stripe | Length in inches, Max 78.74 inches (2 Meters) | F - 94V0 |
| Example | — | — | — | — | — | — | — |
| E | D | 510 | P | A | CW | 3937 | F |
| EMI Product | D-Shape | 5*10 mm | 25KG-HB-Poron Black Core | Grey Ni/Cu Polyester Taffeta | Conductive PSA on the 2/3 of the Wide Side | 1 Meter in Length | 94V0 |
About the model
EFOF - PU high temperature resistant polyurethane conductive product is made by wrapping the highly resilient foam using conductive fabric, with conductive adhesive on the back. It has wide and favorable EMI shielding property, which can provide an excellent solution for EMI. It can also provide non-conductive or conductive pressure-sensitive adhesive belt and can attach a release liner layer to the belt. They can be made into cross-sectional shapes like rectangle, D-shape, C-shape, P-shape, T-shape, knife shape and bell shape, and can be further customized for different applications through die cutting, perforating, grooving etc. It contains no halogen and conforms to the requirement of RoHS / REACH.
Adhesive selection reference
