Aeroflex S12 Model · in TIM-PAD
Aeroflex S12 is a cost-effective, thermal gap pad, with an ideal filler blend that gives it low modulus maintaining…
- Thermal conductivity
- 1.2 W/m·K
- Thickness
- 0.07~10.0
- Flame rating
- 94V-0
Specification
| PROPERTIES | UNIT | TEST METHOD | S12 |
|---|---|---|---|
| Appearance | - | Visual | Grey |
| Thickness | mm | ASTM D374 | 0.07~10.0 |
| Thermal Conductivity | W/m·K | Hot Disk | 1.20 |
| ASTM D5470 | 1.20 | — | — |
| Thermal Resistance (@1mm, 20psi) | °C·in²/W | ASTM D5470 | 1.15 |
| °C·cm²/W | 7.42 | — | — |
| Hardness | Shore OO | ASTM D2240 | 55 |
| Flame Rating | - | U.L | 94V-0 |
| Dielectric Strength (@1MM) | kV | ASTM D149 | >10.0 |
| Volume Resistivity | Ω·cm | ASTM D257 | ≥4.0X10 13 |
| Density | g/cm³ | ASTM D792 | 1.75 |
| Tensile Strength | psi | ASTM D412 | 48 |
| Elongation | % | ASTM D412 | 60 |

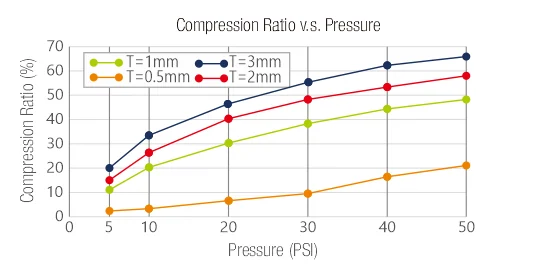

| Compression Deflection (%) atgivenpressure | 10psi | ASTM D575 | 10 |
| 50psi | 42 | — | — |
| 100psi | 58 | — | — |
| Dielectric Constant | @1MHz | ASTM D150 | 5.5 |
| TML (CVCM) | % | ASTM E595 | ≤0.35(0.12) |
| Service Temp. | °C | Lianxin | -60~200 |
| RoHS Compliant | - | Lianxin | YES |
About the model
Aeroflex S12 is a cost-effective, thermal gap pad, with an ideal filler blend that gives it low modulus maintaining optimal thermal performance while allowing easy handling. The natural tack on both sides of the material allows good compliance to adjacent surfaces of components, minimizing interfacial resistance.The filler allows the product to remain a cost effective solution where moderate thermal performance is acceptable.
Product Description
Typical Property Data
