TIM-PAD Family · 6 models

Brief Introduction Lianxin's TIM-Pad provides an effective thermal interface between heat spreaders and electronic…

Thermal conductivity: 1–15 W/m·K
Thickness: 0.50~10.0 – 0.25~10.0
Flame rating: 94V-0

Specification 16 properties · 32 models

PROPERTIES	UNIT	TESTMETHOD	S10U	S12	S15	S15G	S15H	S15U	S22	S22F	S22W	S28	S28S	S28SS	S30	S30B	S30L	S30P	S30S	S35P	S35S	S40	S40B	S51	S51L	S51S	S60	S60J	S80	S80H	S80S	S80Y	NS120	NS150
Appearance	-	Visual	White/Pink	Grey	Light Green	Dark Grey	Light Green	White/Brown	Dark Grey	Grey	Light Grey	Light Blue	Light Blue	Light Blue	Grey	Dark Grey	Grey	Violet	Light Blue	Pink	Pink	Light Yellow	Blue	Grey	Grey	Grey	Grey	Brown	Grey	Light Grey	Light Grey	Light Grey	Grey	Grey
Thickness	mm	ASTM D374	0.50~10.0	0.07~10.0	0.07~10.0	0.07~10.0	0.07~10.0	0.50~10.0	0.15~10.0	0.15~10.0	0.15~10.0	0.20~10.0	0.20~10.0	0.20~10.0	0.20~10.0	0.20~10.0	0.15~10.0	0.30~10.0	0.20~10.0	0.25~10.0	0.25~10.0	0.25~10.0	0.15~10.0	0.25~10.0	0.25~10.0	0.25~10.0	0.30~10.0	0.30~10.0	0.30~10.0	0.30~10.0	0.50~10.0	0.30~10.0	0.30~10.0	0.30~10.0
ThermalConductivity	W/m·K	Hot Disk	1.00	1.20	1.50	1.50	1.50	1.50	2.20	2.20	2.20	2.80	2.80	2.80	3.00	3.00	3.10	3.10	3.00	3.50	3.50	4.00	4.00	5.10	5.10	5.10	6.00	6.00	8.00	8.00	8.00	8.00	12.0	15.0
ThermalConductivity ASTM D5470			1.50	1.50	1.50	1.50	2.20	2.20	2.20	2.80	2.80	2.80	3.00	3.00	3.10	3.10	3.00	3.50	3.50	4.00	4.00	5.10	5.10	5.10	6.00	6.00	8.00	8.00	8.00	8.00	12.0	15.0	—	—
ThermalResistance (@1mm,20psi)	°C·in²/W	ASTM D5470	1.01	1.15	0.98	0.90	0.90	0.90	0.75	0.70	0.75	0.46	0.42	0.42	0.42	0.42	0.37	0.35	0.42	0.45	0.35	0.37	0.39	0.27	0.27	0.24	0.26	0.26	0.25	0.16	0.20	0.25	0.22	0.20
ThermalResistance (@1mm,20psi) °C·cm²/W			6.32	5.81	5.81	5.81	4.85	4.52	4.85	2.97	2.70	2.70	2.71	2.70	2.6	1.4	3.0	3.1	3.1	3.1	3.1	3.1	3.1	3.1	3.1	3.1	3.07	3.25	3.2	3.07	3.17	3.27	—	—
Hardness	Shore OO	ASTM D2240	5	55	45	25	25	5	50	40	50	50	20	30	50	25	45	35	25	25	25	25	60	55	55	25	55	50	50	25	5	50	55	60
FlameRating	-	U.L	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Dielectric strength (@1MM)	kV	ASTM D149	>10.0	>10.0	>10.0	>10.0	>10.0	>10.0	>9.0	>10.0	>9.0	>9.0	>9.0	>9.0	>9.0	>9.0	-	>10.0	>9.0	>15.0	>10.0	>10.0	>12.0	-	-	>9.0	>9.0	>9.0	-	>9.0	>9.0	>9.0	-	-
VolumeResistivity	Ω·cm	ASTM D257	≥1.0X10 12	≥4.0X10 13	≥5.0X10 13	≥5.0X10 13	≥5.0X10 13	≥1.0X10 13	≥3.0X10 13	≥3.0X10 13	≥3.0X10 13	≥1.0X10 13	≥1.0X10 13	≥1.0X10 13	≥1.0X10 13	≥1.0X10 13	≥1.0X10 9	≥2.0X10 13	≥1.0X10 13	≥1.0X10 13	≥1.0X10 13	≥1.0X10 13	≥1.0X10 13	≥1.0X10 13	≥1.0X10 13	≥1.0X10 13	≥1.0X10 12	≥1.0X10 12	≥1.0X10 11	≥1.0X10 11	≥1.0X10 11	≥1.0X10 11	≥1.0X10 9	≥1.0X10 9
Density	g/cm³	ASTM D792	1.60	1.75	1.85	1.85	1.85	2.15	2.60	2.60	2.60	3.00	3.00	3.00	3.00	3.00	2.6	1.4	3.0	3.1	3.1	3.1	3.1	3.1	3.1	3.1	3.1	3.1	3.07	3.25	3.2	3.07	3.17	3.27
TensileStrength	psi	ASTM D412	10	48	30	30	30	35	36	-	36	60	50	50	52	50	45	40	50	-	26	42	45	52	52	52	52	52	40	25	20	40	30	30
Elongation	%	ASTM D412	-	60	55	55	55	55	55	-	55	55	58	58	57	58	60	65	58	-	45	48	30	50	50	50	50	50	45	40	40	45	25	25
CompressionDeflection (%)atgivenpressure	10psi	ASTM D575	25	10	32	18	18	23	12	12	12	12	15	15	12	15	12	25	23	14	16	15	8	12	12	15	11	11	8	15	20	8	8	8
CompressionDeflection (%)atgivenpressure 100psi			82	62	62	83	58	58	58	48	56	56	56	56	58	85	83	58	62	56	35	50	50	60	48	48	42	65	80	42	39	36	—	—
DielectricConstant	@1MHz	ASTM D150	5.5	5.5	6.2	6.2	6.2	6.2	7.5	7.5	7.5	12.5	10.5	10.5	13.5	10.5	19.5	3.0	10.5	10.5	12.0	12.5	6.5	14	14	14	14	14	13.5	6.5	13.5	8.5	16	18
TML(CVCM)	%	ASTM E595	≤0.35(0.12)	≤0.35(0.12)	≤0.55(0.10)	≤0.55(0.10)	≤0.55(0.10)	≤0.55(0.10)	≤0.32(0.08)	≤0.32(0.08)	≤0.32(0.08)	≤0.20(0.05)	≤0.20(0.05)	≤0.20(0.05)	≤0.18(0.05)	≤0.20(0.05)	≤0.15(0.05)	≤0.15(0.05)	≤0.20(0.05)	≤0.20(0.05)	≤0.20(0.05)	≤0.20(0.05)	≤0.15(0.05)	≤0.15(0.04)	≤0.15(0.04)	≤0.15(0.04)	≤0.15(0.04)	≤0.15(0.04)	≤0.15(0.05)	≤0.25(0.08)	≤0.25(0.08)	≤0.15(0.05)	≤0.12(0.05)	≤0.12(0.05)
ServiceTemp.	°C	Lianxin	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200	-60~200
RoHS Compliant	-	Lianxin	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES

About the family

Brief Introduction

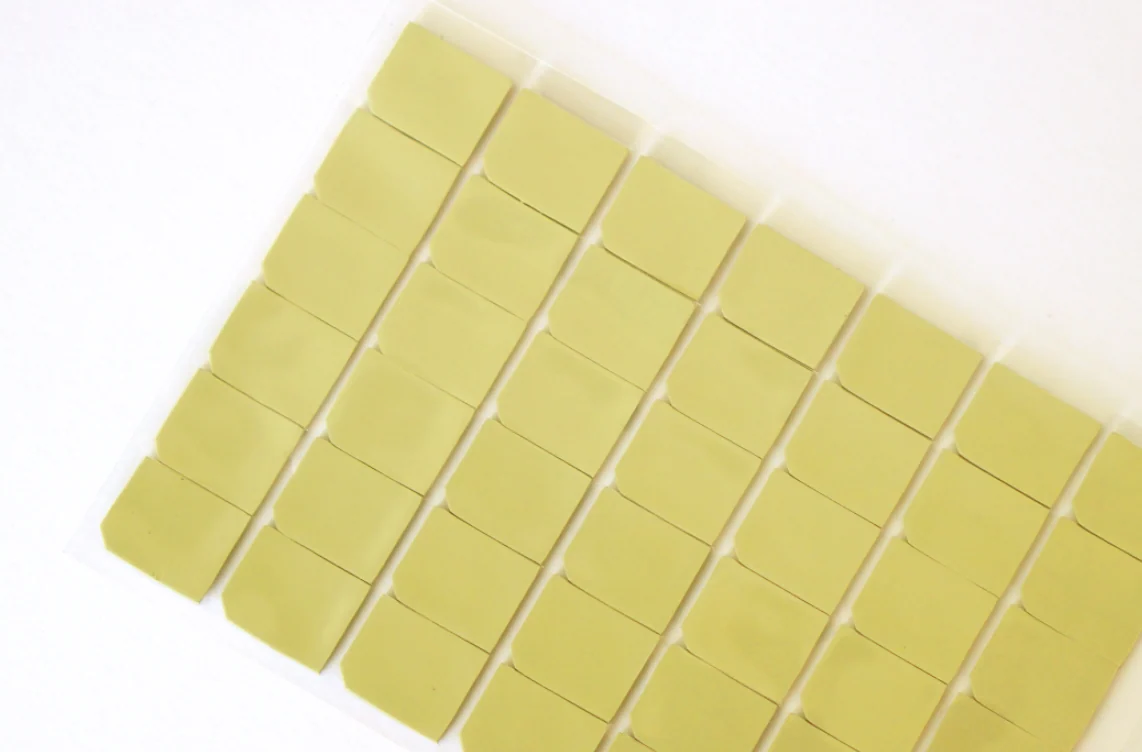

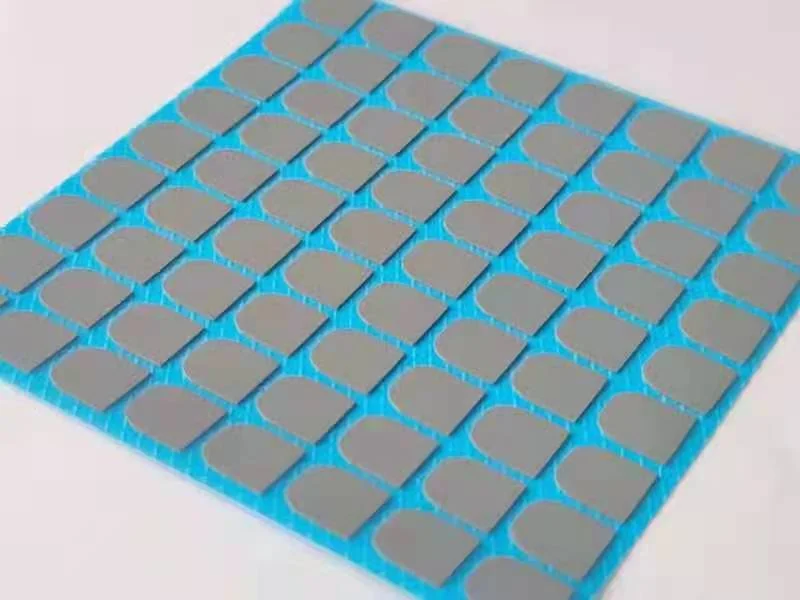

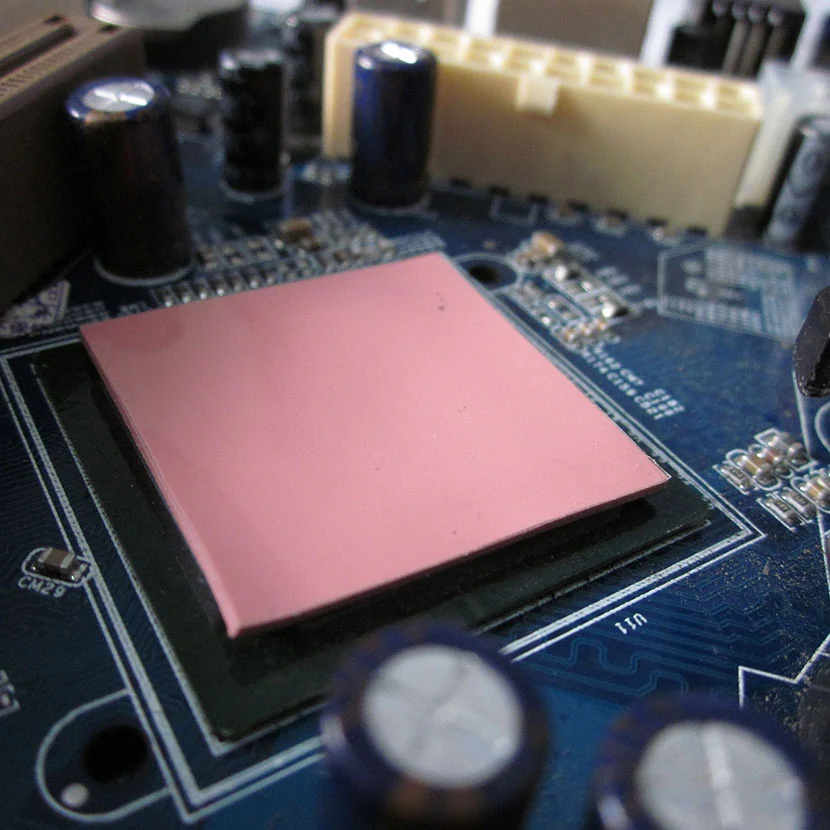

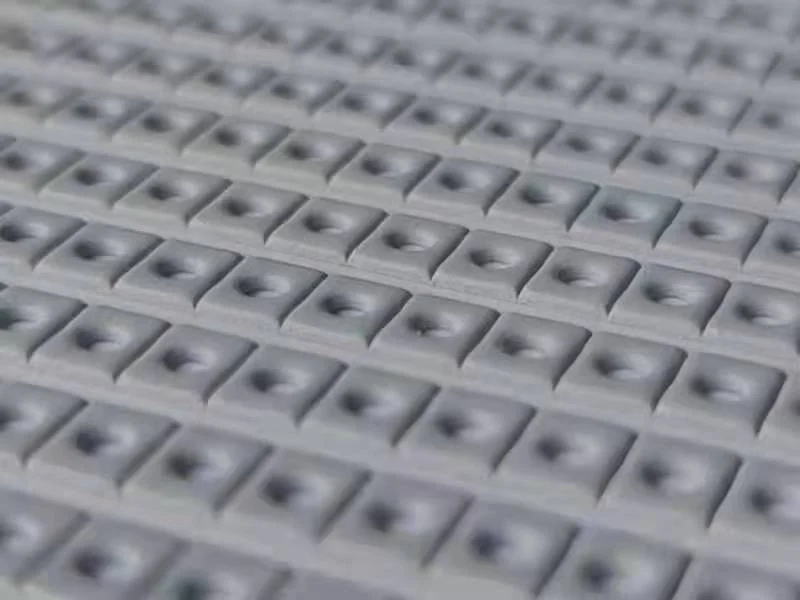

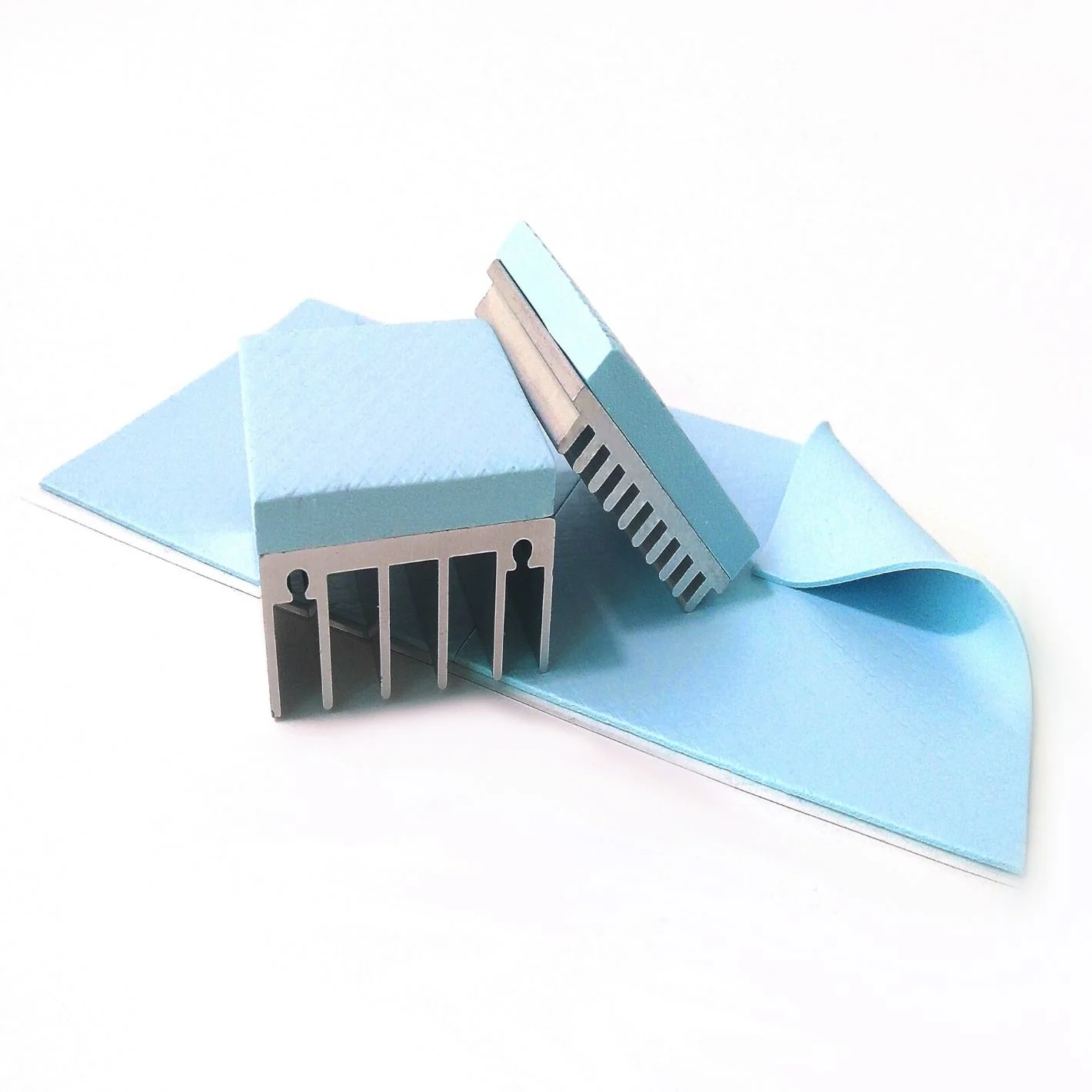

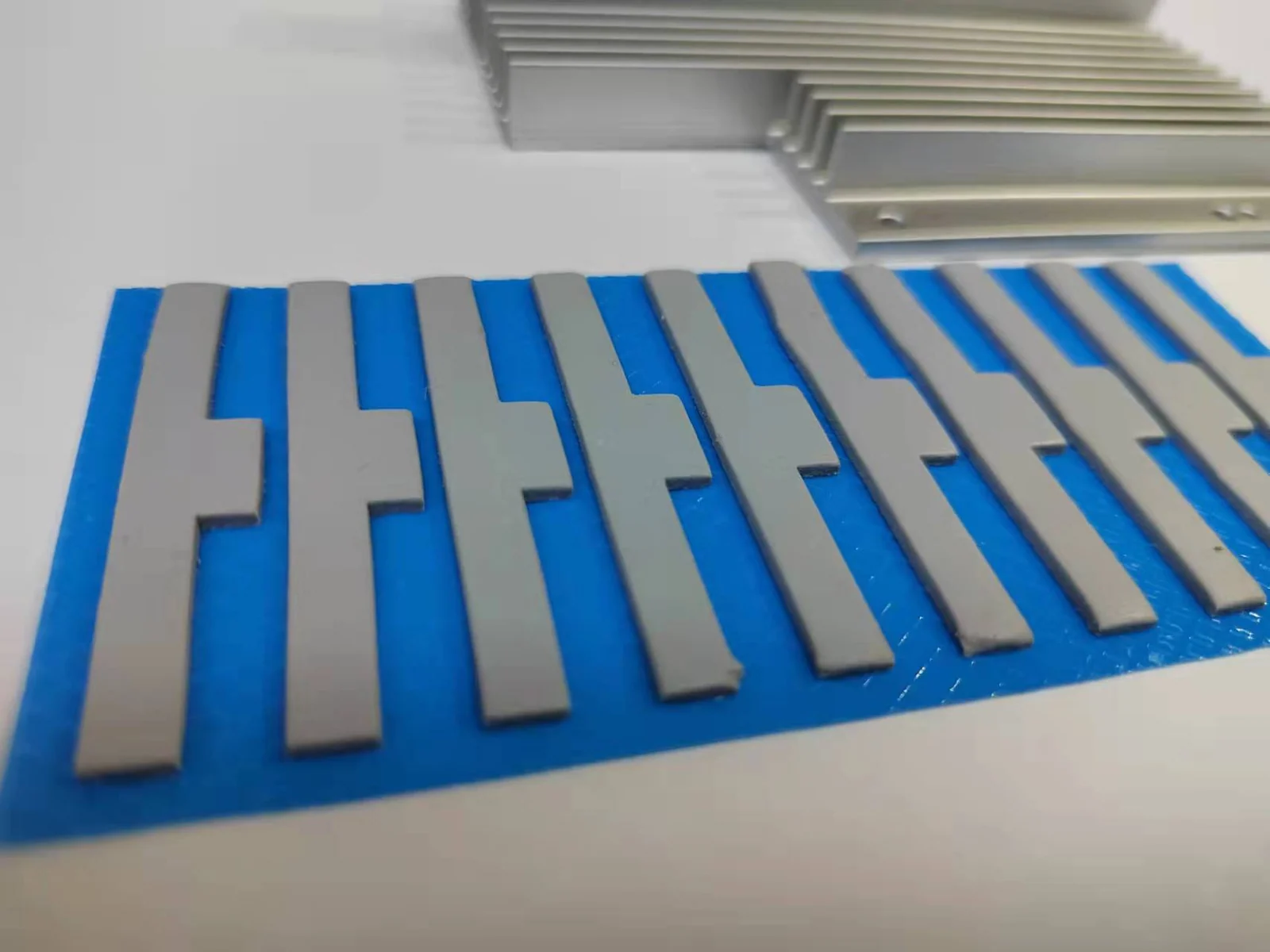

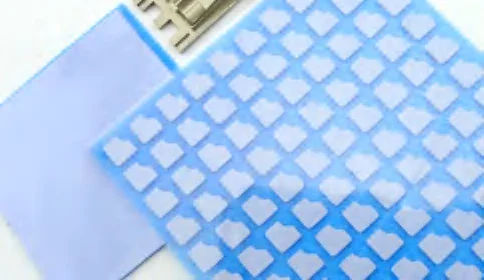

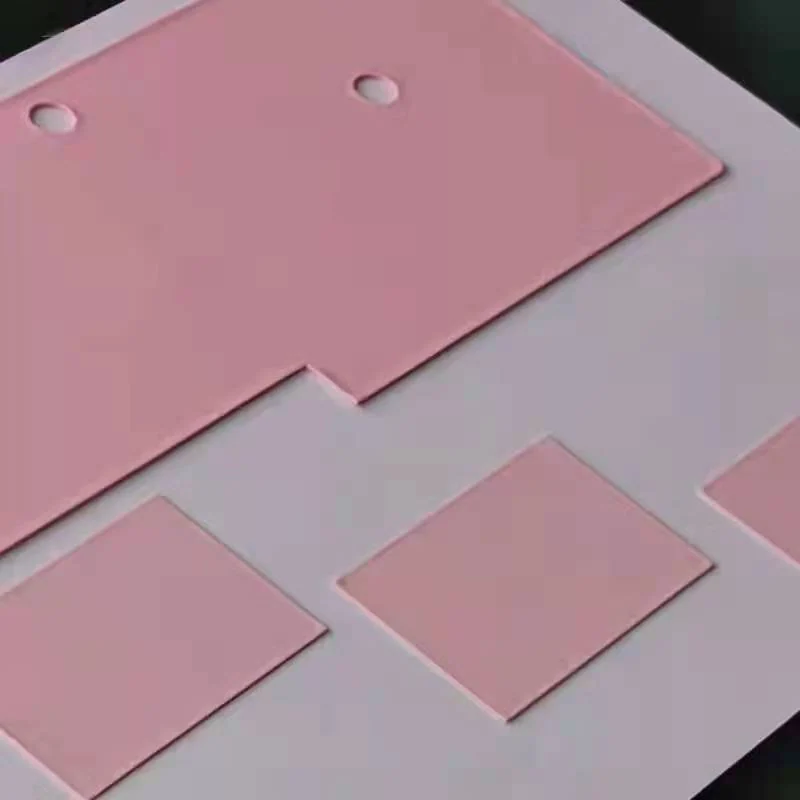

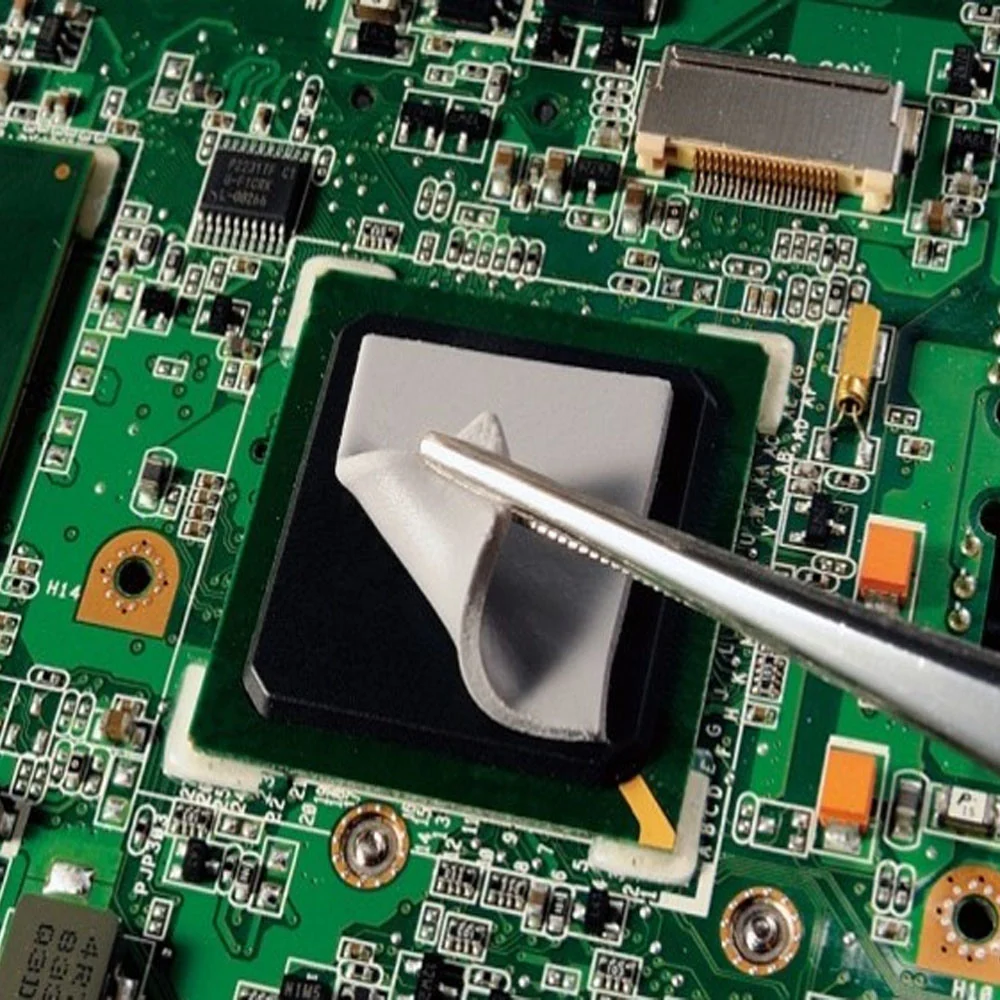

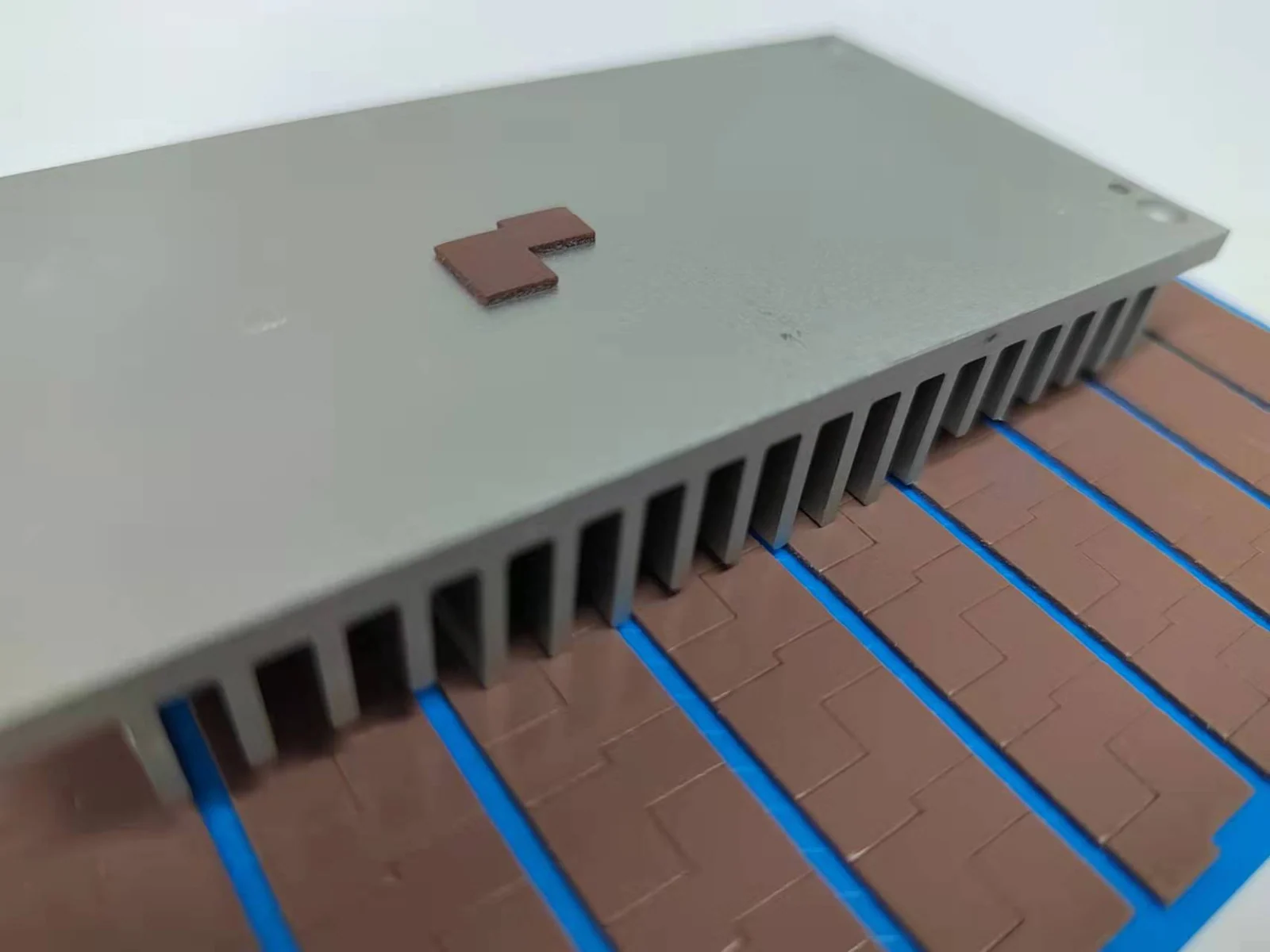

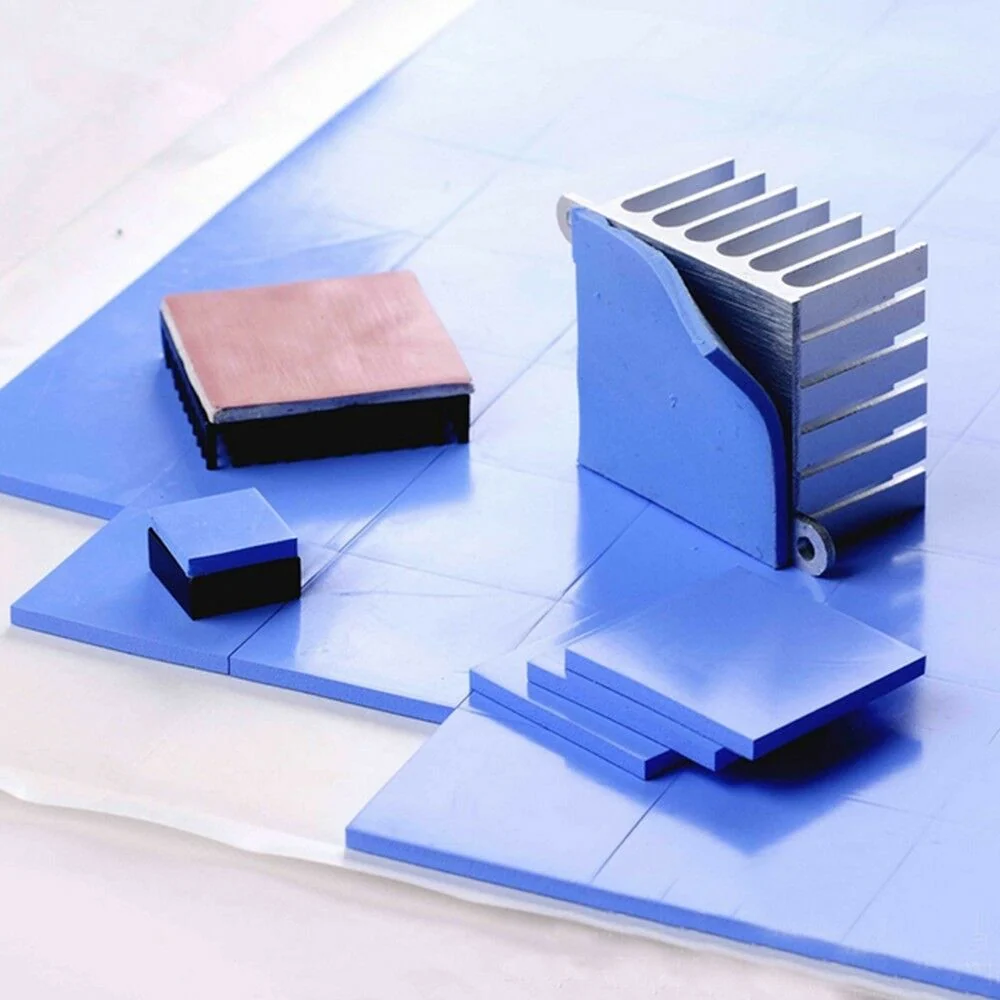

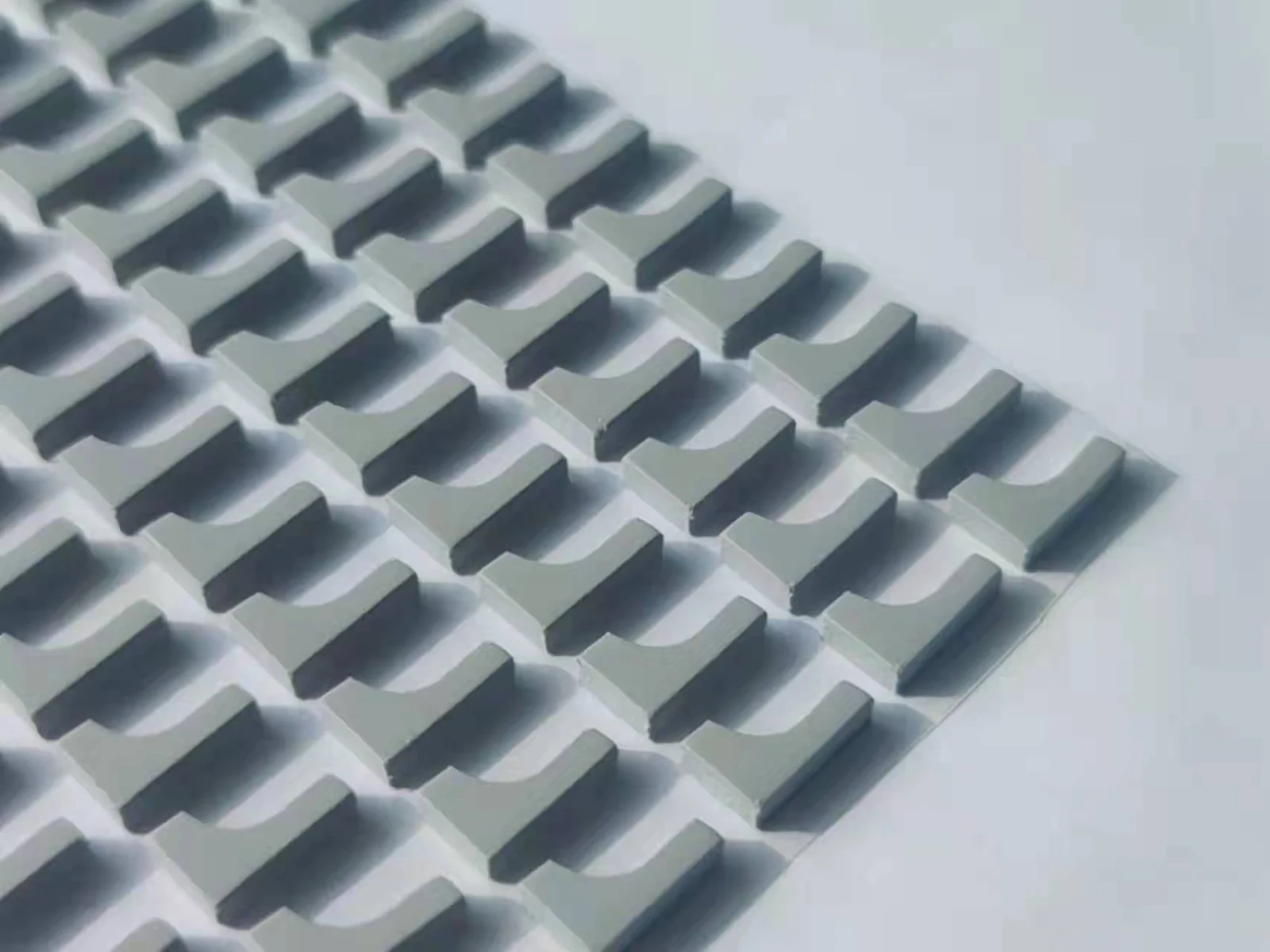

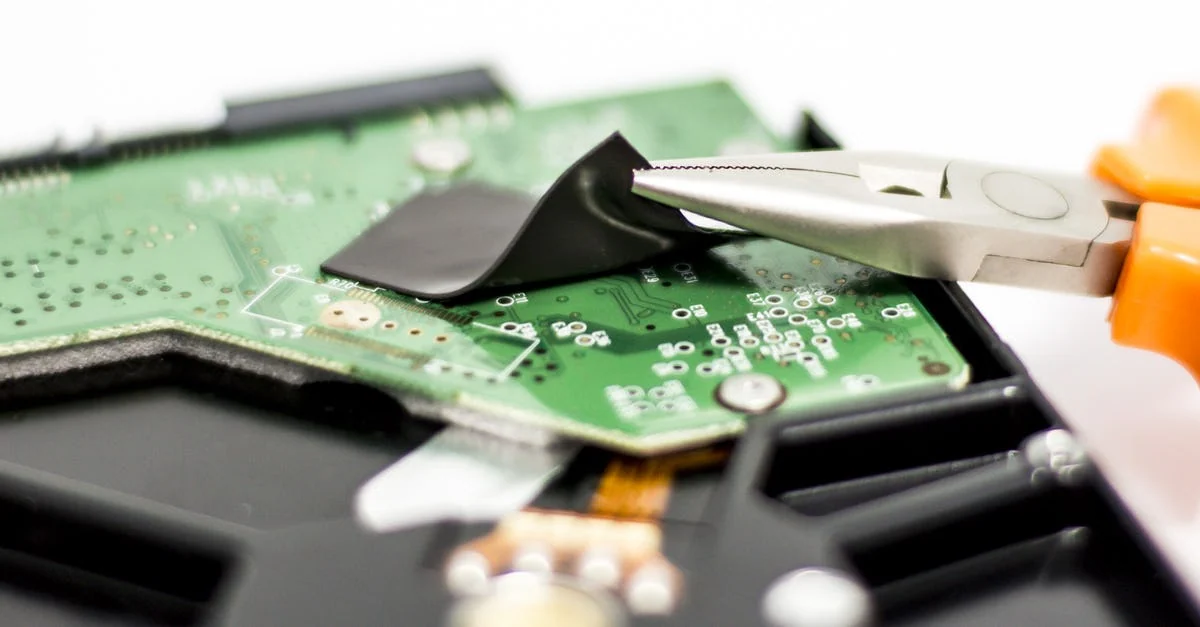

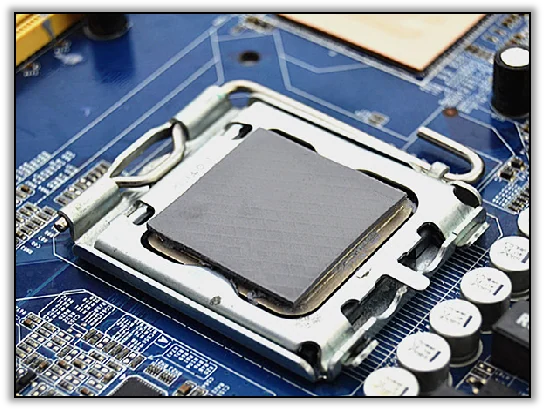

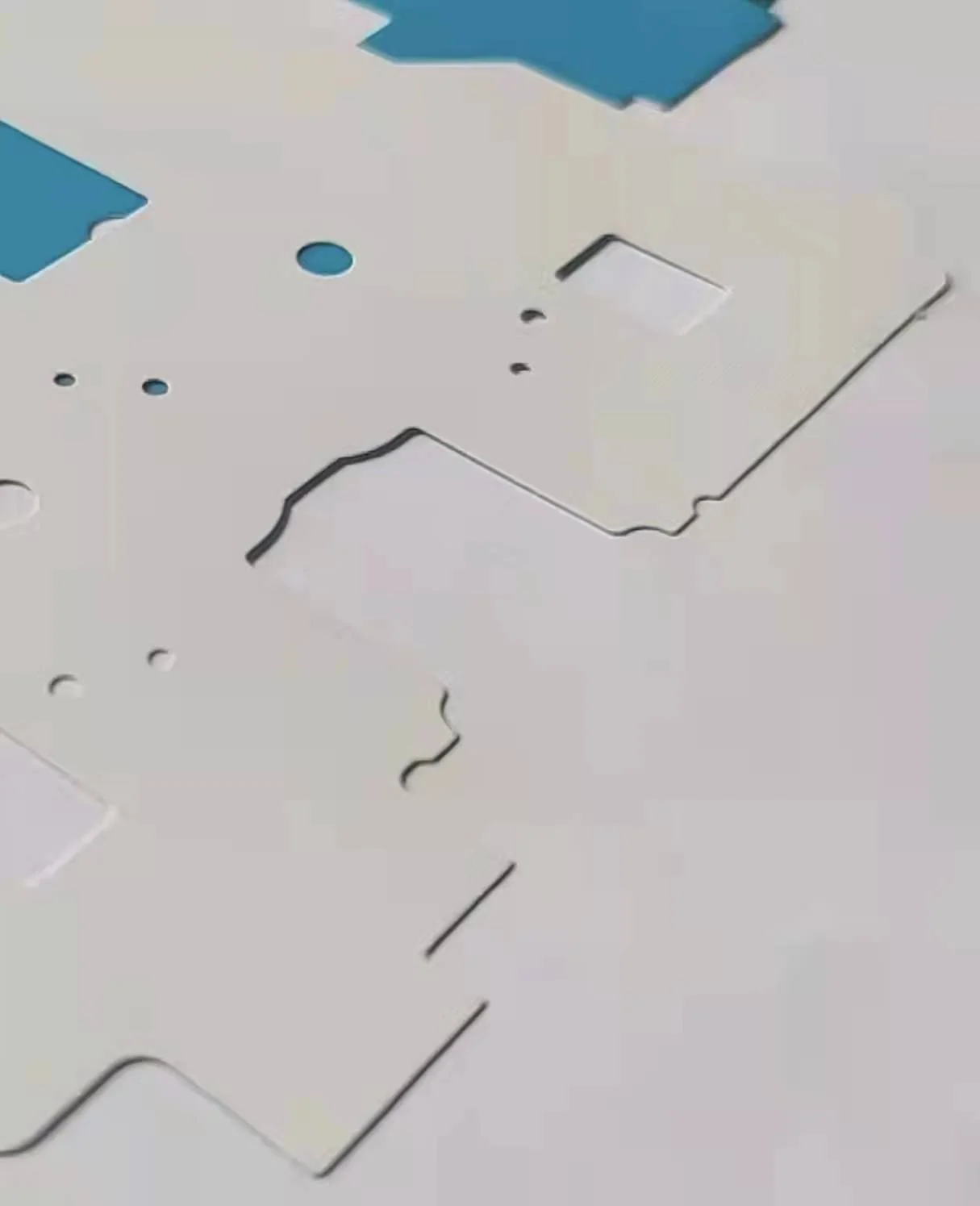

Lianxin's TIM-Pad provides an effective thermal interface between heat spreaders and electronic devices where uneven surface, air gaps and rough surface textures are present.TIM-Padsare supplied in pad-form over a wide range of thickness, and can be molded into complex shapes.
