TIM-Gel (One Part) Family · 4 models
Brief Introduction Lianxin thermal grease is a substance used to promote better heat conduction between two surfaces…
- Thermal conductivity
- 2–8 W/m·K
- Thickness
- 0.08
- Flame rating
- 94V-0
Specification
| PROPERTIES | UNIT | TEST METHOD | TG801 | TG802 | TG802FW | TG803 | TG845 | TG860 | TG861 | TG880 |
|---|---|---|---|---|---|---|---|---|---|---|
| Appearance | - | Visual | Light yellow | Dark Gray | Dark Gray | Pink | Gray | Gray | Gray | Gray |
| Flow Rate | g/min | Lianxin | 26 | 30 | 30 | 22 | 35 | 15 | 20 | 20 |
| Thermal Conductivity | W/m·K | Hot Disk | 3.0 | 2.0 | 2.0 | 3.5 | 4.5 | 6.0 | 6.0 | 8.0 |
| Thermal Conductivity ASTM D5470 | 2.0 | 3.5 | 4.5 | 6.0 | 6.0 | 8.0 | — | — | ||
| Thermal Resistance (@1mm,20psi) | °C·in²/W | ASTM D5470 | 0.08 | 0.10 | 0.10 | 0.07 | 0.06 | 0.04 | 0.032 | 0.022 |
| Thermal Resistance (@1mm,20psi) °C·cm²/W | 0.65 | 0.45 | 0.39 | 0.26 | 0.206 | 0.142 | — | — | ||
| Min.Used Thickness | mm | Lianxin | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 |
| Flame Rating | - | U.L | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Volume Resistivity | Ω·cm | ASTM D257 | ≥1.0X10 13 | ≥1.0X10 14 | ≥1.0X10 14 | ≥1.0X10 13 | ≥1.0X10 10 | ≥1.0X10 9 | ≥1.0X10 9 | ≥1.0X10 9 |
| Density | g/cm³ | ASTM D792 | 3.00 | 2.60 | 2.60 | 3.05 | 3.05 | 3.25 | 3.25 | 3.25 |
| Dielectric Constant | @1MHz | ASTM D150 | 6.8 | 6.3 | 6.3 | 6.5 | 9.5 | 13.5 | 13.5 | 12.5 |
| TML(CVCM) | % | ASTM E595 | ≤0.20(0.08) | ≤0.15(0.05) | ≤0.15(0.05) | ≤0.15(0.05) | ≤0.15(0.05) | ≤0.12(0.01) | ≤0.12(0.01) | ≤0.12(0.01) |
| Low volatility content (D4-D20) | ppm | Gas Chromatograph | <80 | <100 | <100 | <50 | <50 | <20 | <20 | <20 |
| Service Temp | °C | Lianxin | -60~200 | -60~200 | -60~200 | -60~200 | -60~200 | -60~200 | -60~200 | -60~200 |
| RoHS Compliant | - | Lianxin | YES | YES | YES | YES | YES | YES | YES | YES |
About the family
Brief Introduction

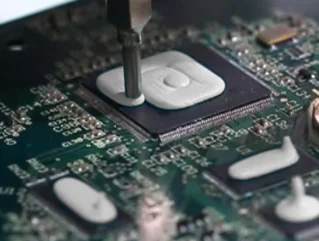

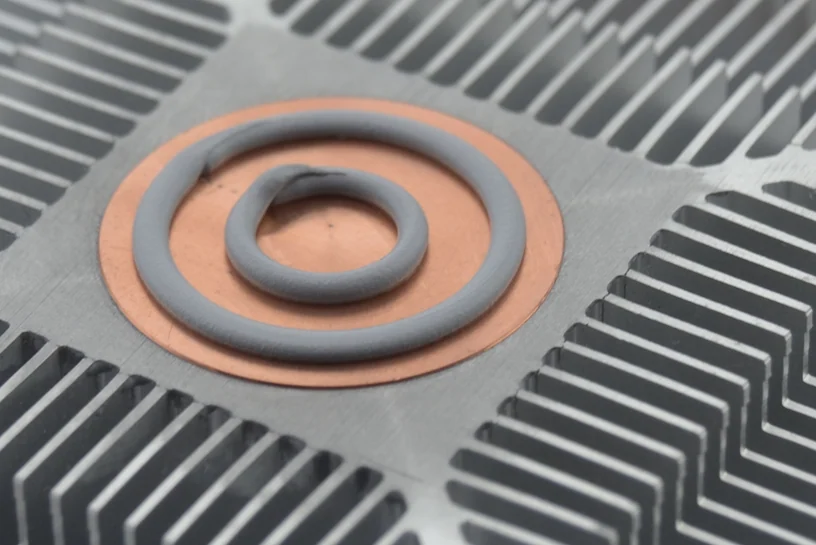

Lianxin thermal grease is a substance used to promote better heat conduction between two surfaces and is commonly used between a microprocessor and heatsink. Thermal Grease does not add mechanical strength to the bond between heat source and heat spreader. Its excellent surface wetting results in low interfacial resistance.
